Garage Door Spring Repair & Replacement

Same-day broken spring replacement Licensed & insured Free estimates

Call (224) 395-0939
  • Weighed, Not Guessed Spring sized to the door’s real load
  • Replaced in Pairs So one new spring is not carrying an old one
  • Wound to Turn Count Manufacturer spec, then balance-tested by hand
  • Cables Checked Too A snapped spring usually takes them with it

Spring repair

The Spring Does the Lifting, Not the Opener

A double door weighs 150 pounds or more. The opener only guides it up and down. The springs carry the actual weight, which is why a door you could lift with one hand yesterday will not budge today once one snaps.

A torsion spring holds several hundred pounds of stored force even when it looks broken. Releasing that without winding bars is the one garage door repair we tell people not to attempt themselves.

We weigh the door, match the spring on wire size, inside diameter and length, and fit them in pairs. Then it gets wound to the manufacturer’s turn count, balance-tested by hand at three heights, and checked that the opener is no longer dragging against it.

A spring that lets go usually takes the cables with it. If yours are frayed or the door has pulled out of line, we handle cable replacement and off-track repair on the same call.

  • 150 lb and up what the spring is holding
  • Replaced in pairs so both sides pull evenly
  • Same visit for most spring jobs
GET IN TOUCH TODAY
Technician inspecting a garage door torsion spring during a repair
Matched sets, wound to spec

Springs are sized to your door’s measured weight and replaced in pairs, so the door stays balanced and the opener is not left pulling against a worn one.

Know the warning signs

When a Spring Is on Its Way Out

Any one of these means the spring is done, not the opener. Catching it early keeps a snapped spring from taking the cables and door out of line with it.

  • Loud bang, then nothing

    A firecracker-like snap from the garage followed by a door that will not lift is almost always a broken spring.

  • The door feels twice as heavy

    If it fights you to lift by hand or slides back down when stopped halfway, the springs have lost their tension.

  • A gap in the torsion spring

    A two- to three-inch gap in the coil above the door means it has snapped. Do not run the opener, it can damage the door.

  • It drops instead of lowering

    A door that crashes down rather than settling has lost spring support. That is a real crush hazard, not just a nuisance.

  • One side lifts before the other

    Crooked or shuddering travel means a spring, cable or drum on one side is out of sync with its pair.

  • Seeing one of these

    Do not force the door. Call and we will tell you whether it is safe to use until we get there.

    (224) 395-0939
Garage door spring system serviced on a double door
5 parts we
replace
Spring hardware

Torsion, Extension, and What Goes With Them

  • Torsion springs

    Mounted on a shaft above the opening. Sized and wound to spec, they carry the door through its whole travel instead of jerking it at the ends.

  • Extension springs

    Run along the tracks and stretch as the door closes. We replace them in pairs with proper safety cables to contain a break.

  • High-cycle spring upgrades

    For doors that open dozens of times a day, we offer heavier-duty springs rated for 20,000+ cycles to cut down on future replacements.

  • Lift cables & drums

    Springs and cables work as a set. We replace frayed cables and worn drums so the new springs pull the door evenly on both sides.

  • Center & end bearings

    Worn bearing plates cause grinding and uneven wear on new springs. We replace them during the job so your rebuild lasts.

GET A FREE ESTIMATE

How We Replace Your Garage Door Springs

The same four steps on every spring job, from weighing the door to the balance test before we pack up.

  1. 01

    Measure & weigh the door

    We identify your spring system and measure wire size, inside diameter, and length, and factor in the door's real weight, so the replacement matches the load exactly.

  2. 02

    Matched-set recommendation

    You get a written estimate and a straight recommendation, including whether a high-cycle upgrade is worth it and why replacing springs in pairs saves you a second call.

  3. 03

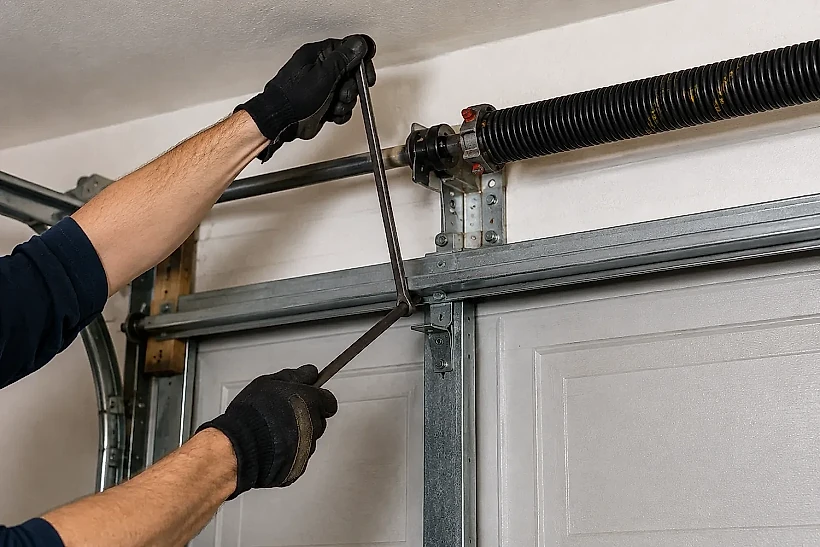

    Replace & wind to spec

    Using proper winding bars and stocked parts, we install the springs and any worn cables, drums, or bearings, then wind to the manufacturer's exact turn count.

  4. 04

    Balance test & safety check

    We test the door by hand at several heights, confirm it holds position, and verify the opener is not straining. If something comes up afterwards, Contact us.

Garage door torsion spring being replaced
Written PRICE BEFORE WE START
On call AFTER HOURS AND WEEKENDS
Worn lift cable and drum checked during a spring replacement

Where We Work

The shop is on Townline Road and crews run routes across Chicago and most of the surrounding suburbs. Call or send the form and we will tell you what it costs.

Call (224) 395-0939 Get a free estimate
Open in Google Maps
  • Call us (224) 395-0939
  • Email info@fixmygaragedoor.us
  • Our office 1280 Townline Rd
    Mundelein, IL 60060
  • Hours Mon–Fri 7:00 AM – 7:00 PM
    Sat 9:00 AM – 3:00 PM     Emergencies answered any hour

Areas We Serve

If your town is not on the list, call anyway. There is a big chance we cover it.

Spring Repair Questions

Torsion springs mount on a metal shaft above the door and store energy by twisting as the door lowers; they give smoother, more controlled travel and last longer, so most modern doors use them. Extension springs run along the horizontal tracks on each side and stretch as the door closes. Both are under heavy load but fail and are replaced differently. We identify which system your door uses, match the correct spring by wire size, inside diameter, and length, and set it up so the door lifts evenly.

If your door uses two springs and one has broken, we strongly recommend replacing both. The springs were installed together and have gone through the same number of cycles, so when one snaps the other is usually close behind. Replacing the pair keeps the door balanced, avoids a second service call within weeks, and protects your opener from pulling against a mismatched, worn spring. If your door only has a single spring, we replace that one and verify the balance. Mechanical damage beyond the springs is covered by our general garage door repair service.

Springs are rated in cycles, where one cycle is the door going up and down once. A standard spring is rated for roughly 10,000 cycles, which is about seven to twelve years for an average household. Homes that use the garage as the main entrance wear springs out much faster. If you open and close the door many times a day, ask us about high-cycle springs rated for 20,000 cycles or more. They cost a little more up front but last far longer. Regular maintenance and balance checks also extend their life.

We do not recommend it. Torsion and extension springs hold an enormous amount of stored energy, and a slip while winding or unwinding one can cause serious injury or damage. Proper replacement requires the right winding bars, correctly sized springs, and experience balancing the door afterward. Our technicians carry the tools and matched parts to do it safely in one visit and test the finished door so the opener is not straining, call (224) 395-0939 and we will handle it.

Usually, yes. A broken spring is the most common reason a door will not open, so we stock a wide range of torsion and extension springs on our trucks and hold same-day slots across Chicago and the surrounding suburbs whenever routing allows. Call early in the day for the best chance at a same-day visit. If your door uses an unusual spring size that has to be ordered, we will tell you the timeline up front and make the door safe in the meantime. Book your repair to get on the schedule.
